soc/iris-web/deploy/eks_manifest

The Iris EKS manifest to deploy Iris-web on AWS EKS.

Description:

• This manifest file will help to deploy the application on the AWS EKS.

Prerequisites;

• Install AWS CLI
• Setup AWS EKS cluster. (terraform example here)
• Install AWS ebs CSI driver add-on on EKS cluster. (terraform example here)
• Install AWS alb ingress controler add-on on EKS cluster. (terraform example here)

Build & push Docker Images

• To build the docker images follow the commands 👇 ``` bash

  Clone the iris-web repository

  $ git clone https://github.com/dfir-iris/iris-web.git $ cd iris-web

# Build the dockers (Build webApp and db docker images, skip the nginx because we using AWS ALB instead of nginx) # app & woker: $ docker build -t webapp:latest -f docker/webApp/Dockerfile . # DB: $ docker build -t db:latest -f docker/db/Dockerfile . ```

• Once the docker images built, push those images into AWS ECR

Deploy:

• Before we deploy the manifeat, we need to update the Docker image on our manifest.

Note: Same docker image to the app and worker

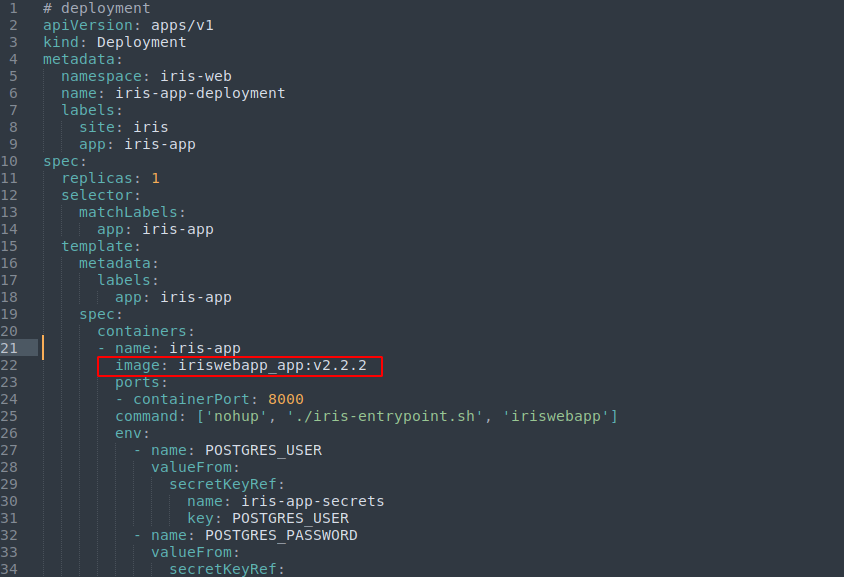

• ### update app image:
  • Naviaget to the deploy/eks_manifest/app directory.
  • open the deployment.yml file and update the image here, which we pushed on the ECR.

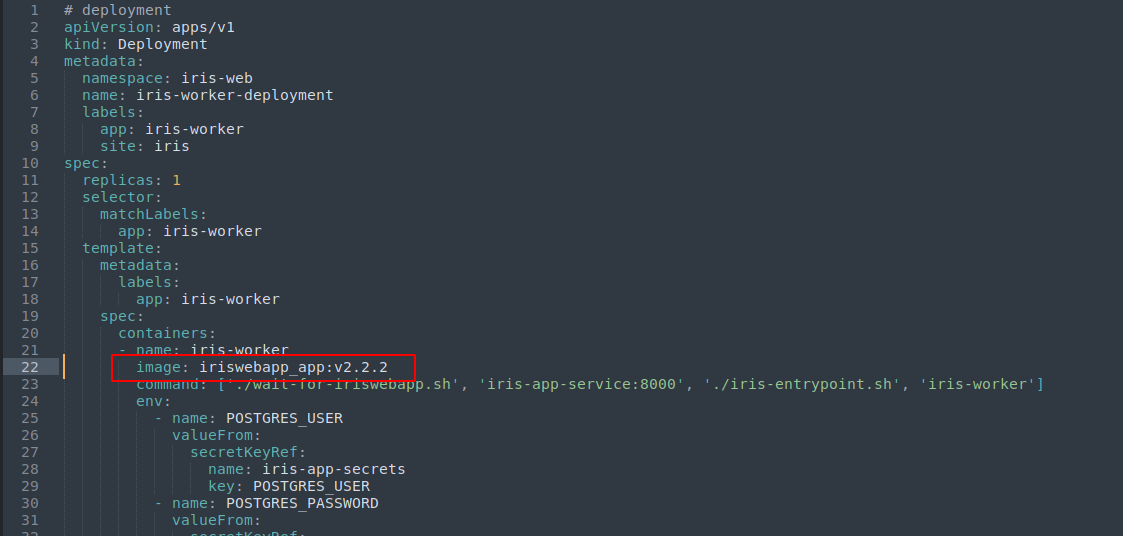

• update worker image:

  • Naviaget to the deploy/eks_manifest/worker directory.
  • open the deployment.yml file and update the image here, which we pushed on the ECR.

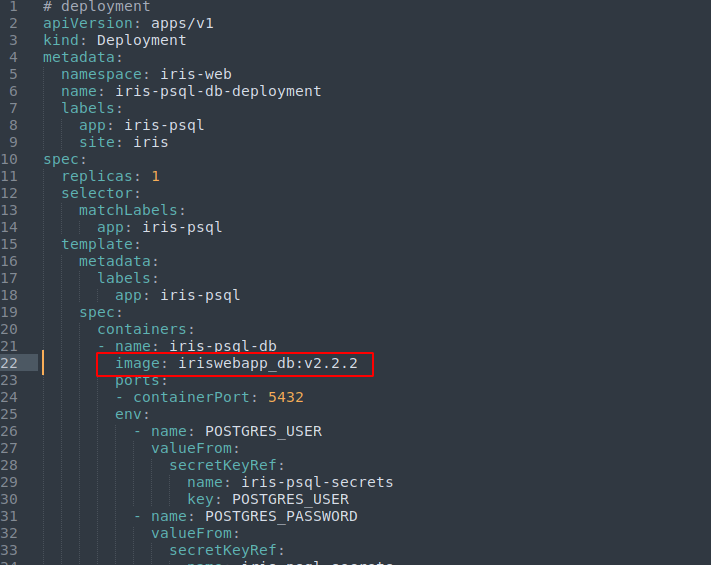

• update db image:

  • Naviaget to the deploy/eks_manifest/psql directory.
  • open the deployment.yml file and update the image here, which we pushed on the ECR.

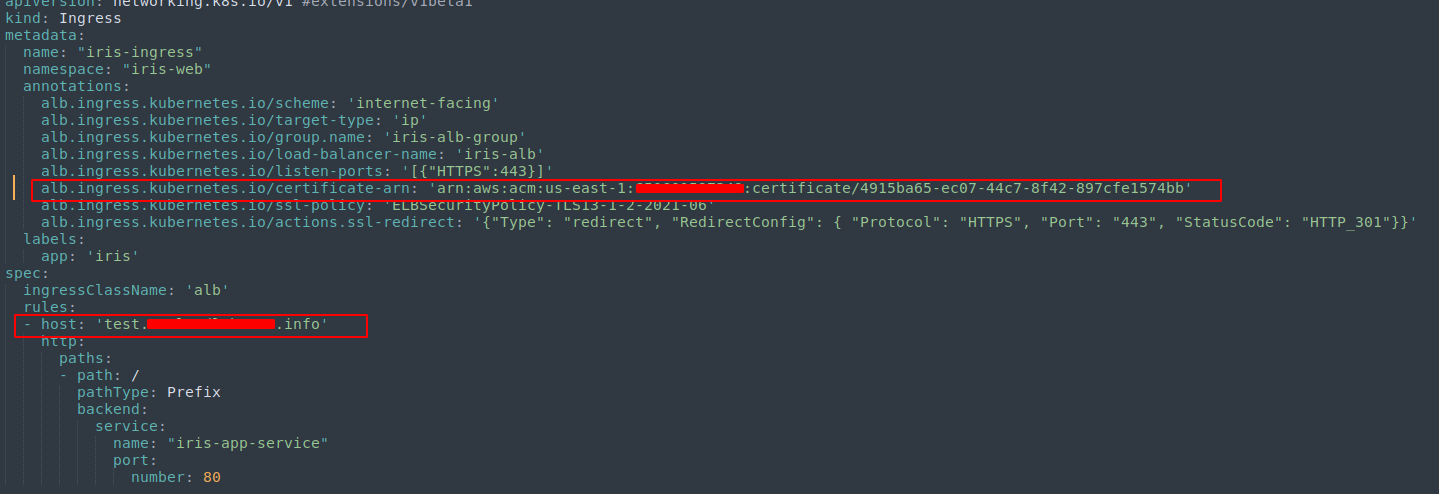

• update the SSL and domain name on app ingress YAML file

  • Naviaget to the deploy/eks_manifest/app directory.
  • open the ingress.yml file and update the SSL and host
  • Note:
    • SSL : Give a ACM certificate ARN.

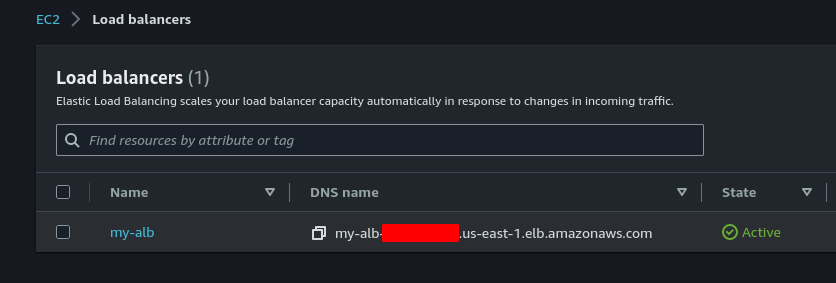

    • HOST : Give the host name whatever you want. In additionally, once the ingress created it will be provisioned the ALB on AWS with this name "iris-alb". Then, configure the DNS 'CNAME' record with hostname (which you given on ingress file) point to the AWS alb 'DNS'

• once updated the all the things which is mentioned above, then run the Makefile

  • Navigate to the deploy/eks_manifest, here you can see the 'Makefile'
  • To deploy app, run bash $ make $ make create
  • To delete app, run


  caution: it will be delete all things exclude DB

      $ make
      $ make delete


• Get Admin username and password

  • Once everything created we can get administrator username and password from the app pod

     $ kubectl get pod -n iris-web
     # Copy the pod name and give it on the below command (pod name looks like "pod/iris-app-deployment-🎲")
     $ kubectl logs <pod_name> -n iris-web
     # You can see the credential at the end of the logs
